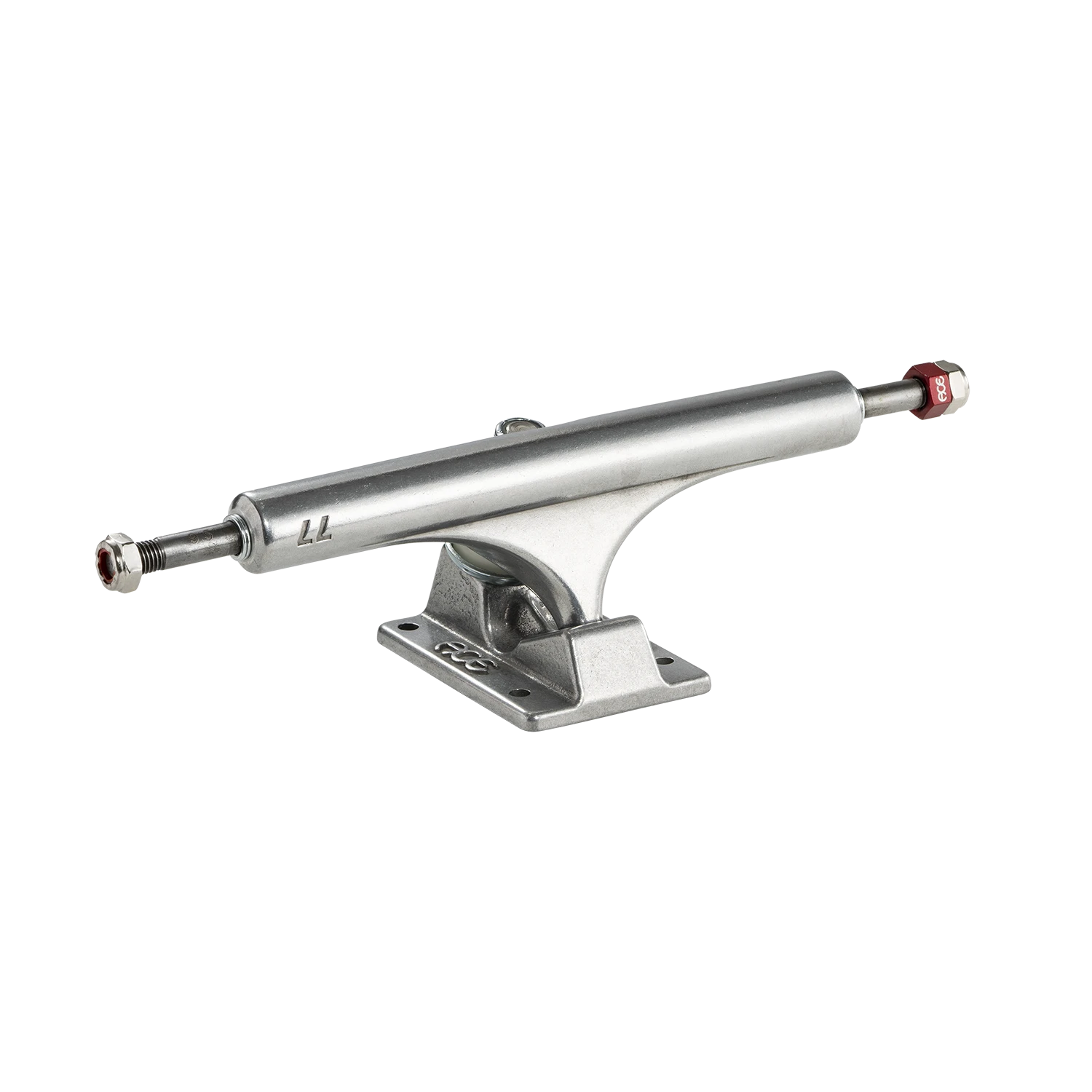

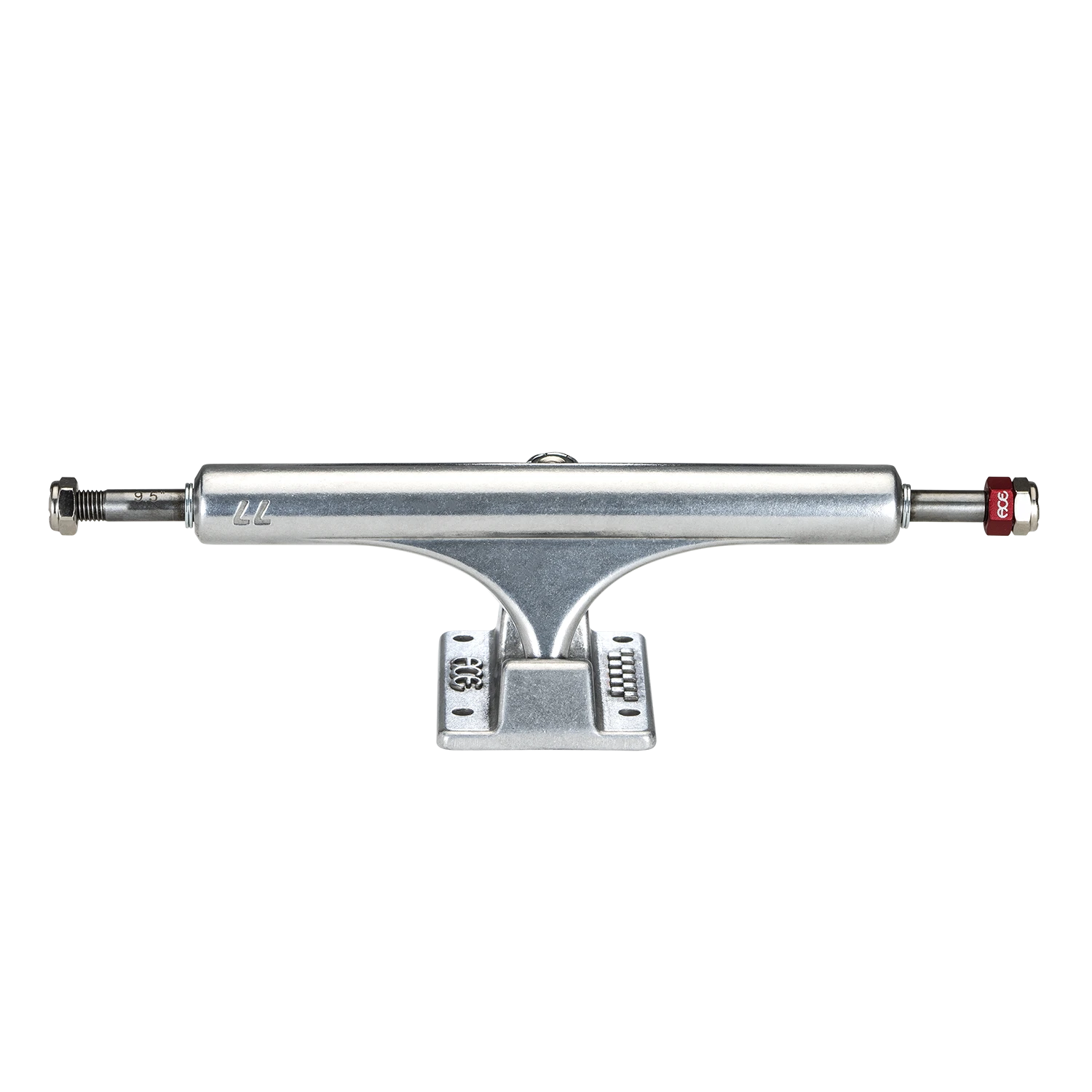

Ace Trucks AF1 77 Raw (9.5 Inch Width)

Price for Set of trucks (2 x Trucks)

AF1 77 Specs:


• Axle width: 9.5” (241mm)


• Hanger width: 6.9” (175mm)


• Truck height: 2.1” (53mm)


• Fits boards: 9.25” – 9.75”


• Weight: 15 oz.


• Manufactured with high-quality AA 356.2 alloy using our own proprietary casting method.


• True T6 heat-treated baseplates and hangers.


• SAE 4140 steel alloy axles, oversized to eliminate bearing wobble.


• Patent pending rethreading axle nuts – no more damaged axle ends!


• Durable Hand-poured 96a urethane pivot bushings for smooth as silk response.



• Refined bushing and cup washer shapes for a cleaner turn.


• Machine-faced hanger ends for precise bearing contact.



 The all-new ACE AF1 features game-changing performance without deviating from our original Ace geometry. The AF1 is carefully manufactured using our proprietary casting process. Years in development, the ACE AF1 has a 70% increase in the aluminum’s structural integrity, making it the strongest cast truck on the market. We updated the sizing on the 44 thru 77 models for a better fit across multiple board widths.

The Ace AF1, tomorrow’s technology today!
